Instantaneous PF Correction System (IPFC)

Get a Price/Quote

Product Details:

IP Rating IP65
Insulation Material High-grade insulation material
Connector Type Industrial Plug
Mounting Type Wall-mount
Power Factor 0.9 to 1.0
Overheating Protection YES
Feature Instantaneous correction of power factor
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Instantaneous PF Correction System (IPFC) Price And Quantity

Instantaneous PF Correction System (IPFC) Product Specifications

Warranty 12 months manufacturer warranty
Mounting Type Wall-mount
Power Factor 0.9 to 1.0
Protection Level Advanced electrical protections
Product Type Instantaneous PF Correction System
Overheating Protection YES
Input Voltage 230V or 415V AC
Color Metallic grey
Rated Voltage 415V
Insulation Material High-grade insulation material
IP Rating IP65
Weight Approximately 10-20 kg
No Of Poles Single or Three Pole (based on configuration)
Connector Type Industrial Plug
Connection Type Wired
Surface Finish Powder-coated
Size Compact
Energy Consumption Low
Shape Rectangular
Material Metal (Steel/Aluminum)
Feature Instantaneous correction of power factor
Application Power Factor Correction in electrical systems
Output Type Corrected electrical signals
Frequency (MHz) 50 Hz
Phase Single-phase or Three-phase
Operating Temperature -10°C to 55°C
Dimension (L*W*H) Customizable dimensions based on requirement

Product Description

Instantaneous PF Correction System (IPFC) Features

Maintain Power Factor above 0.95, simultaneously ensuring the difference between KWH and KVAH to ~1 %.
PLC controlled single CT sensing for load and to handle imbalance and Instantaneous variations
High speed Soft Switching arrangement to mitigate imbalance with capacity to withstand the stress occurring during high speed switching improving equipment reliability.
Monitors and responds immediately for any variation in load by triggering the capacitor to switch on/off within 6 milliseconds once the load on/off without affecting the life of the load.

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Electrical Power Devices' category

Neutral Power Factor Compensator Color : Gray Rated Voltage : 400V Input Voltage : 220240V Overheating Protection : YES Protection Level : Other, High Voltage Protection Product Type : Neutral Power Factor Compensator Power Factor : 0.98 or higher Mounting Type : Floor Mount Warranty : 12 Months Connector Type : Terminal No Of Poles : 3 Weight : 45 kg IP Rating : IP54 Insulation Material : Highgrade Insulation Energy Consumption : Low Size : Standard Surface Finish : Powder Coated Connection Type : Wired Operating Temperature : 0°C to 55°C Dimension (L*W*H) : 600x200x400 mm Phase : Three Phase Frequency (MHz) : 50/60 Hz Output Type : AC Voltage Feature : Highefficiency performance Overvoltage and undervoltage protection Application : Power Factor Correction Material : Metal Shape : Rectangular

Send Inquiry

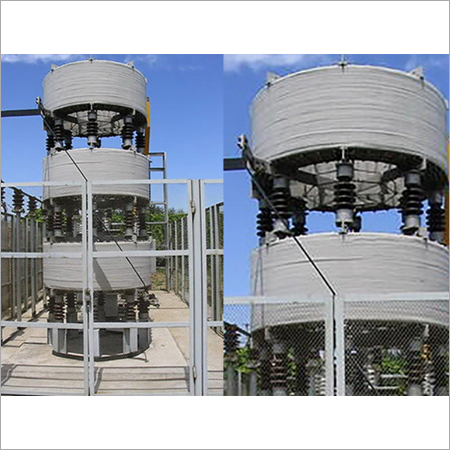

Series Shunt Harmonic Filter Reactors (Medium And High Voltage) Color : Gray Rated Voltage : Up to 72 kV Input Voltage : Medium and High voltage range Overheating Protection : Integrated thermal protection, Other Protection Level : Other, High protection against voltage surges Product Type : Series Shunt Harmonic Filter Reactors Power Factor : Improves power factor Mounting Type : Outdoor installation Warranty : 1 Year Connector Type : Bolted No Of Poles : Not applicable for reactors Weight : Dependent on specific design IP Rating : IP44/IP55 Insulation Material : Highgrade insulation materials Energy Consumption : Optimized for energy efficiency Size : Customizable based on project needs Surface Finish : Corrosionresistant coating Connection Type : Shunt Operating Temperature : 40°C to 55°C Dimension (L*W*H) : Custom dimensions based on application Phase : Threephase Frequency (MHz) : 50/60 Hz Output Type : Reactive compensation Feature : Reduces harmonics and stabilizes system voltage Application : Harmonic filtering in medium and high voltage electrical systems Material : Metal core with insulated windings Shape : Cylindrical
