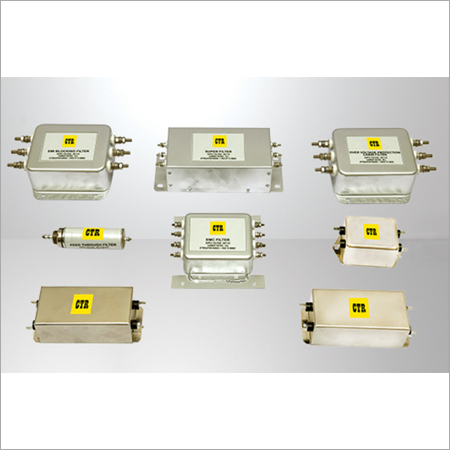

AC DC Electromagnetic Interference Filters (EMI EMC Filters)

Get a Price/Quote

Product Details:

Power Factor Optimized for EMI filtering
Connector Type Terminal Block
Mounting Type Panel Mounted
Overheating Protection YES
Feature Compact design high attenuation effective EMI/EMC suppression
Surface Finish Metallic coated
Operating Temperature -25C to 85C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

AC DC Electromagnetic Interference Filters (EMI EMC Filters) Price And Quantity

AC DC Electromagnetic Interference Filters (EMI EMC Filters) Product Specifications

Rated Voltage Varies by model
Operating Temperature -25C to 85C
No Of Poles Single or multiple poles
Dimension (L*W*H) Varies based on specific model
Protection Level High resistance to electrical noise
IP Rating IP20
Size Compact varies by model
Application Electromagnetic interference suppression for AC and DC power lines
Feature Compact design high attenuation effective EMI/EMC suppression
Energy Consumption Minimal supports efficient operation
Phase Single-phase and three-phase options
Overheating Protection YES
Mounting Type Panel Mounted
Connector Type Terminal Block
Power Factor Optimized for EMI filtering
Material Metal and electrical-grade polymers
Surface Finish Metallic coated
Product Type AC/DC Electromagnetic Interference Filters (EMI EMC Filters)
Color Metallic
Warranty 1 year
Output Type Filtered output
Frequency (MHz) 50/60 Hz
Shape Rectangular
Insulation Material High-grade insulation
Weight Varies based on specific model
Input Voltage AC and DC compatibility
Connection Type Wire Connections

Product Description

AC DC Electromagnetic Interference Filters (EMI EMC Filters) Technical details

AC filters (Series feedthrough) available in voltage range of 220 VAC, 690VAC
DC filters available in the voltage range 5V, 10V, 12V and 24V
Maximum DC current capacity 4A
Conducted Spike suppression upto 2000V
Conducted RF noise suppression capacity upto 50dB to 5Ghz
