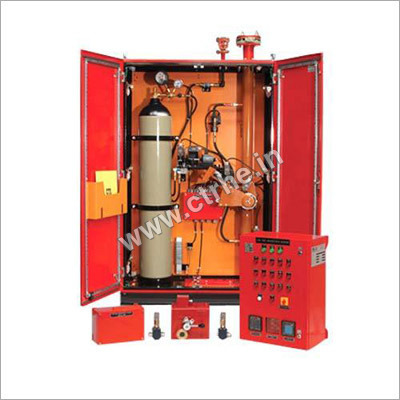

Transformer Protection System

Name: Transformer Protection System
Brand: CTR MANUFACTURING INDUSTRIES PRIVATE LIMITED

Get a Price/Quote

MOQ : 1 Piece

Transformer Protection System Specification

Voltage
24V / 230V AC (Control Panel voltage)

Connectivity Type
Wired, with control panel interface

Coating Type
Corrosion resistant powder coating

Features
Quick response, suitable for high voltage, low maintenance, user-friendly operation, suitable for indoor & outdoor use

Operating Pressure
Up to 25 Bar

Mounting Type
Wall Mount / Floor Mount / Transformer-Mount

Installation Type
Fixed / Modular / Direct-inline with transformer

Fire Class
Class A, B, C (Electrical and Oil Fire)

Coverage Area
As per transformer size / customized

Shape
Cylindrical / Modular Tanks

Working Temperature
-30C to +55C

Energy Efficiency Rating
N/A (not applicable to passive fire systems)

Fire Extinguisher Type
Automatic Modular Fire Suppression System

Control Type
Automatic / Manual

Technology
Automatic Fire Detection & Suppression System (typically Clean Agent or Novec 1230)

Application
Transformer Fire Protection

Max Flow Rate
Depend on system design

Capacity
As per requirement / from 2kg upwards

Diameter
Customizable / As per system design

Pressure
Up to 25 Bar (varies as per agent and system)

Approval / Certification
UL / FM / CE (depending on model)

System Response Time
Within seconds of fire detection

Maintenance
Low, periodic inspection recommended

Alarm Notification
Audio and visual alert, remote monitoring compatible

System Lifespan
10+ years (system dependent)

Environmental Compliance
CFC free, ozone friendly extinguishing agents

Agent Type
Clean Agent Gas (Novec 1230 / FM 200) or Inert Gas

Detection Mode
Linear Heat Sensing Cable / Thermosensitive Tubing

Operating Environment
Suitable for both indoor and outdoor transformers

Material
Stainless steel / Mild steel as per requirement

Transformer Protection System Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Ex-Works

Payment Terms
Cash on Delivery (COD), Cash Advance (CA)

Packaging Details
Appropriately packed

Main Domestic Market
All India

About Transformer Protection System

We are bringing forth our customers a broad spectrum of Transformer Protection System that is approved by Fire Authorities and Tariff Advisory Committee (TAC). Our system is a ISO 9001:2000 certified, and prevents blast and consequent fire in a power, generator, distribution and rectifier transformer Parts. Other than this, our Transformer Protection System requires low maintenance, and is available in varied detailed specifications at competitive prices.

Product Information:

Available in design of ELIN, predecessors of VA TECH, Austria.
Tarrif Advisory Committee (TAC) and Fire Authorities approved
Environment friendly Nitrogen Injection System
Free from any kind of climatic changes
Fire-Proof Nitrogen Injection System
SCADA compatibility available
Require less maintenance

Approved by transformer parts manufacturers, Railways, domestic and international utilities, Consultants and Individual Power Producers

Advantages:

Suitable for both indoor & outdoor installations
Can operated in the absence of power

Product details

Fire prevention cabinet color	Red or customized
Color	Red
Material	Cast Iron, Brass
Type	Fire prvention system for transformer
Pressure	High Pressure

Comprehensive and Rapid Fire Protection

Equipped with state-of-the-art linear heat sensing or thermosensitive tubing, the Transformer Protection System detects fire within seconds. Its automatic suppression technology can be tailored to suit a wide range of transformer sizes and environments, offering peace of mind against electrical and oil fires.

Eco-friendly and Compliant Solutions

This fire protection system exclusively utilizes CFC-free, ozone-friendly extinguishing agents, such as Novec 1230 or FM 200, meeting stringent environmental standards. With UL, FM, and CE certifications (depending on model), it guarantees both safety and regulatory compliance.

Flexible Installation and Long-lasting Durability

Available in fixed, modular, or direct-inline configurations, the system is designed with corrosion-resistant powder coating for harsh indoor or outdoor conditions. It requires minimal upkeep, with only periodic inspections recommended, and boasts a service life of over 10 years.

FAQs of Transformer Protection System:

Q: How does the Transformer Protection System operate in the event of a fire?

A: The system uses either linear heat sensing cable or thermosensitive tubing to continuously monitor for signs of fire. When a significant temperature rise or fire is detected, the system activates within seconds, automatically releasing a clean agent or inert gas to suppress the fire and generate audio-visual alerts.

Q: What are the main benefits of using clean agent or inert gas for transformer fire suppression?

A: Clean agents like Novec 1230 or FM 200 are highly effective, leave no residue, are safe for use around electrical equipment, and are environmentally friendly (CFC free, ozone-friendly). They ensure rapid suppression of Class A, B, and C fires, minimizing downtime and equipment damage.

Q: Where can this system be installed and what mounting options are available?

A: The system is designed for both indoor and outdoor transformer installations. It can be wall-mounted, floor-mounted, or directly installed on the transformer, with customizable tank shapes (cylindrical or modular) and adaptable capacities to match the specific site and transformer design.

Q: When and how often does the system require maintenance?

A: Regular periodic inspections are recommended to ensure system reliability. Maintenance requirements are minimal, thanks to robust construction and corrosion-resistant coatings, contributing to a projected service life of over 10 years.

Q: What is the installation process for this fire protection system?

A: Installation involves mounting the detection and suppression units (fixed, modular, or inline) as per transformer size and site requirements, connecting them to the control panel, and integrating with audio-visual alarms and remote monitoring systems. Qualified personnel should handle setup to ensure adherence to safety standards.

Q: How does the system interface with remote monitoring and alert systems?

A: The system features both audio and visual alerts and can connect to remote monitoring platforms via wired interfaces. This ensures real-time notifications and swift response, allowing for prompt intervention even when on-site personnel are unavailable.
