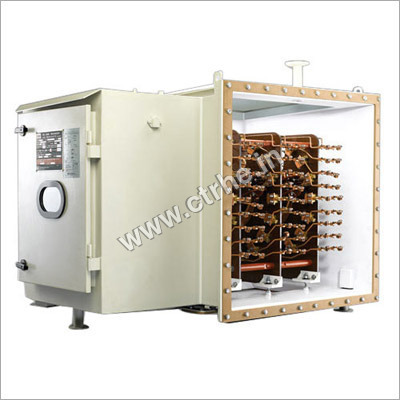

Flange Mounted On Load Tap Changer
Flange Mounted On Load Tap Changer

Flange Mounted On Load Tap Changer

MOQ : 1 Piece

Flange Mounted On Load Tap Changer Specification

  • IP Rating
  • IP54
  • Surface Finish
  • Powder Coated
  • Feature
  • Automatic Tap Changing, Remote Operable
  • Insulation Material
  • Epoxy Resin Insulation
  • Mounting Type
  • Flange Mounted
  • Connector Type
  • Heavy-duty Copper Connectors
  • Overheating Protection
  • Available
  • Power Factor
  • >0.95
  • Shape
  • Rectangular Flange
  • Humidity %
  • Maximum 95% RH
  • Efficiency
  • >98%
  • Operating Temperature
  • -10°C to +55°C
  • Product Type
  • Flange Mounted On Load Tap Changer
  • Application
  • Power Transformers, Voltage Regulation
  • Protection Level
  • Enhanced Electrical Protection
  • Frequency (MHz)
  • 50 Hz (0.05 MHz)
  • Rated Voltage
  • 33 kV
  • Energy Consumption
  • Low Power Consumption
  • Output Type
  • Adjustable Voltage Output
  • Color
  • Grey
  • Dimension (L*W*H)
  • 450 mm x 320 mm x 210 mm
  • Weight
  • Approx. 85 kg
  • Size
  • Standard Industrial Size
  • Phase
  • Three Phase
  • Input Voltage
  • Up to 36 kV
  • No Of Poles
  • 3
  • Connection Type
  • Bolted Flange Connection
  • Material
  • High-grade Copper and Insulated Steel
  • Accessories
  • Position Indicator, Limit Switches
  • Compatible Transformer Rating
  • Up to 100 MVA
  • Mechanical Endurance
  • Tested to 10,000 Tap Changes
  • Tap Position
  • 16 Steps
  • Service Life
  • Over 250,000 Operations
  • Cooling Method
  • Oil Immersed
  • Maintenance
  • Low Maintenance Design
  • Response Time
  • <3 seconds per tap change
  • Vibration Resistance
  • High
  • Contact Type
  • Silver Plated Moving Contacts
  • Drive Type
  • Motorized Drive Mechanism
  • Operating Altitude
  • Up to 2000 meters
  • Control Method
  • Local/Remote Electrical Control


Flange Mounted On Load Tap Changer Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • Ex-Works
  • Payment Terms
  • Cash on Delivery (COD), Cash Advance (CA)
  • Packaging Details
  • Appropriately packed
  • Main Domestic Market
  • All India


About Flange Mounted On Load Tap Changer

With rich industry experience and knowledge, we are engaged in manufacturing and supplying an optimum quality Flange Mounted On Load Tap Changer. The product is manufactured by team of adroit professionals using high quality components at our well-established production unit. It is widely used to control power distribution to individual loads and also provides security for load cables. Our renowned clients can avail this Flange Mounted Onload Tapchanger from us at a reasonable rate.

Features:

  • Easy to use
  • Superior performance
  • Fine finish

Specifications:

  • Voltage Class 11kv, 22kv, 33kv, 66kv and 132 neutral end
  • Single phase off circuit Tap changer upto 2000 Amps
  • Current Rating up to 500 Amps
  • Type tested as per IS and IEC standards
  • 6, 9, 10,17, 21, positions
  • Tap changers for Furnace application
  • Compatible for SCADA and computer controls
  • Supplied with Remote Tap changer Control Cubicle

Product details

Current Rating

Up to 500 Amps

Power Rating

235 Mva

Brand

CTR

Phase

Three Phase

Voltage Class

11Kv, 22Kv, 33Kv, 66Kv and 132 Neutral

Positions

6, 9, 10,17, 21





Efficient Voltage Regulation for Power Transformers

Our tap changer provides precise adjustable voltage output, supporting vital voltage regulation tasks in power transformers. Its automatic, remote-operable design supports various transformer ratings up to 100 MVA, making it ideal for utility and industrial applications. Reliable mechanical endurance and high-quality materials ensure consistent performance.


Low Maintenance & Robust Construction

Built with high-grade copper and insulated steel, the changer features silver-plated contacts and powder-coated surfaces for maximal durability. The oil-immersed cooling and enhanced electrical protection reduce downtime and maintenance requirements. It also includes advanced safety features like overheating protection and limit switches.


Advanced Control & High Performance

Benefit from local and remote control modes for flexible operation. The system operates efficiently at high power factors (
