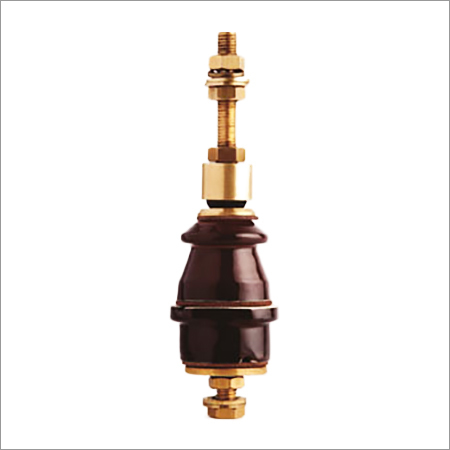

Assembled Bushings

Name: Assembled Bushings
Brand: CTR MANUFACTURING INDUSTRIES PRIVATE LIMITED

Get a Price/Quote

MOQ : 1 Piece

Assembled Bushings Specification

High Voltage
Up to 1000 kV

Capacity
Customized

Standard
IEC 60137, IS:2099

Operating Temperature
-25C to +105C

Voltage Booster Type
Applicable in Type A/B bushings

Dimension (L*W*H)
As per specification or drawing

Low Voltage
As per design

Coil Material
Copper or Aluminum

Cooling Type
Self-cooled / Oil-immersed

Load Loss
Low

Rated Voltage
11 kV to 1000 kV

Product Type
Assembled Bushing

Material
Epoxy Resin Impregnated Paper, Porcelain

Frequency (MHz)
50-60 Hz

Efficiency
High

Phase
Single Phase / Three Phase

Usage
Electrical Insulation and Mechanical Support in Transformers

Coil Structure
Layered

Power Scope
Up to 1000 kV

Weight
Varies with dimension

Assembled Bushings Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Ex-Works

Payment Terms
Cash on Delivery (COD), Cash Advance (CA)

Packaging Details
Appropriately packed

Main Domestic Market
All India

About Assembled Bushings

With an aim to fulfill varied needs of industrial applications, we are affianced in providing optimum quality Assembled Bushings. These bushings are designed using supreme grade components and materials with the use of ultra-modern technology in line with defined global market standards under strict vigilance of deft professionals. Our provided bushings are extensively used in industries for fixing purposes. Further, the offered Assembled Bushings are excellent in functionality, due to this attribute they are widely demanded by our customers.

Features:

Fine finish
Durable
Light weight

Engineered for High Voltage Performance

Designed for a voltage range from 11 kV up to 1000 kV, our bushings meet demanding requirements of electrical insulation and mechanical support in transformers and switchgear. Their reinforced epoxy resin and porcelain construction ensures stable operation across a frequency of 50-60 Hz, while supporting both single and three-phase systems.

Adaptable Customization

We offer tailored solutions, adjusting creepage distance, dimensions, capacity, and color to align with your systems specification or drawing. Terminal type, coil material, and mounting options can be customized to ensure seamless integration with diverse industrial and outdoor setups without compromising reliability.

Built for Durability and Safety

Our bushings are engineered with high-grade insulation levels and glazed porcelain surfaces to withstand pollution and harsh environmental conditions. Operating flawlessly between -25C and +105C, they ensure low leakage current and minimal partial discharge for enhanced performance and system longevity.

FAQs of Assembled Bushings:

Q: How are the assembly bushings customized for different applications?

A: We tailor creepage distance, capacity, dimensions, coil structure, and terminal types based on specific equipment requirements or customer drawings. This guarantees optimal integration with transformers, switchgears, circuit breakers, and various high-voltage systems.

Q: What are the key benefits of using high-grade insulation bushings in harsh environments?

A: High-grade insulation, combined with glazed porcelain surfaces, provides enhanced dielectric strength and outstanding resistance to outdoor and industrial pollution, ensuring reliable long-term performance in challenging mediums.

Q: When should flange-mounted bushings be specified for equipment?

A: Flange-mounted bushings should be selected when secure, reliable mounting and robust mechanical support are essential for equipment like transformers, circuit breakers, and high-voltage switchgears, especially in outdoor or industrial use.

Q: Where are these bushings suitable for installation?

A: These bushings are ideal for transformers, switchgears, circuit breakers, and other high-voltage or outdoor/industrial electrical equipment, supporting efficient performance where electrical insulation and mechanical support are critical.

Q: What is the process for ensuring low leakage current and partial discharge?

A: Advanced manufacturing utilizing epoxy resin impregnated paper and porcelain, combined with stringent testing conforming to IEC 60137 and IS:2099 standards, ensures that leakage current stays below 1 mA and partial discharge remains under 10 pC at rated voltage.

Q: How does the material selection benefit electrical insulation and safety?

A: The use of epoxy resin, paper, and porcelain provides a stable dielectric medium, reducing the risk of electrical breakdown, supporting high voltage endurance, and minimizing the probability of current leakage or pollution-related failures.
