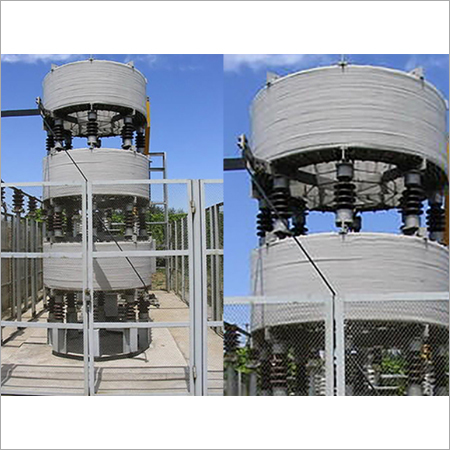

Send InquirySeries Shunt Harmonic Filter Reactors (Medium And High Voltage)
Series Shunt Harmonic Filter Reactors (Medium And High Voltage) Specification
- Power Factor
- Improves power factor
- Overheating Protection
- Integrated thermal protection
- IP Rating
- IP44/IP55
- Mounting Type
- Outdoor installation
- Surface Finish
- Corrosion-resistant coating
- Connector Type
- Bolted
- Operating Temperature
- -40°C to 55°C
- Shape
- Cylindrical
- Feature
- Reduces harmonics and stabilizes system voltage
- Insulation Material
- High-grade insulation materials
- Product Type
- Series Shunt Harmonic Filter Reactors
- Application
- Harmonic filtering in medium and high voltage electrical systems
- Protection Level
- High protection against voltage surges
- Frequency (MHz)
- 50/60 Hz
- Rated Voltage
- Up to 72 kV
- Energy Consumption
- Optimized for energy efficiency
- Output Type
- Reactive compensation
- Color
- Gray
- Dimension (L*W*H)
- Custom dimensions based on application
- Weight
- Dependent on specific design
- Warranty
- 1 Year
- Input Voltage
- Medium and High voltage range
- Size
- Customizable based on project needs
- Phase
- Three-phase
- Connection Type
- Shunt
- Material
- Metal core with insulated windings
- No Of Poles
- Not applicable for reactors
About Series Shunt Harmonic Filter Reactors (Medium And High Voltage)
Series Shunt Harmonic Filter Reactors (Medium And High Voltage) Features
- Voltage drop 0,2, 6, 7 %
- Power from 7.4 to 34 kVAR
- High level of safety through internal fuse
- Including compact discharges resistors
- Aluminium or Copper Wound
- Single Phase or Tower Configuration
